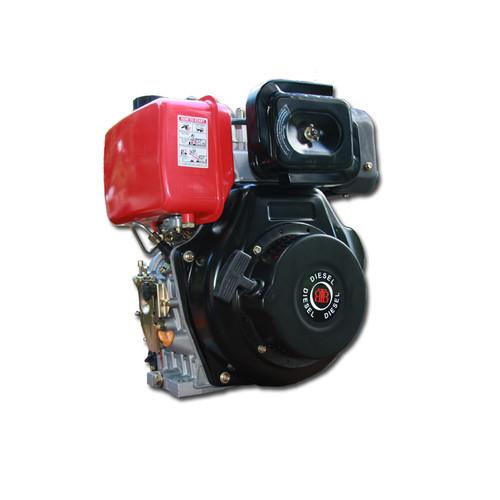

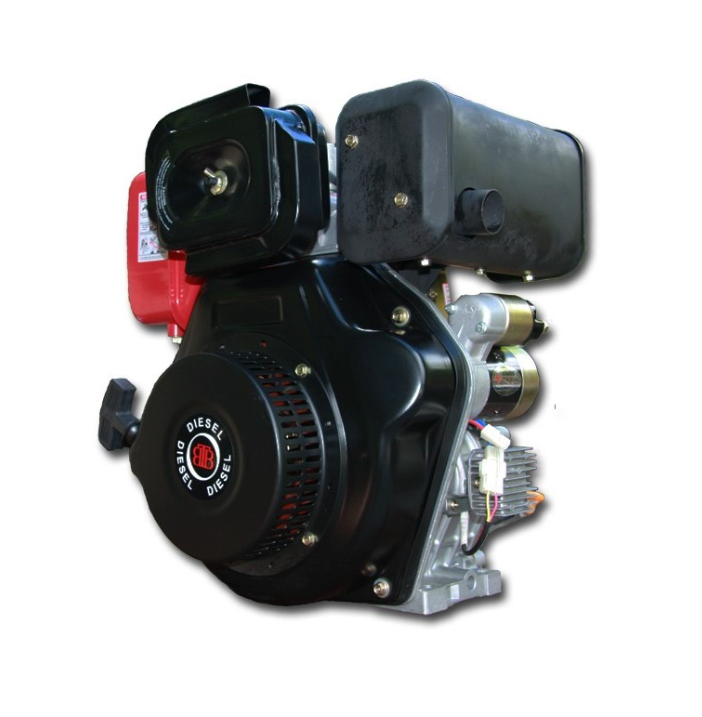

These JD engines come from the 3rd largest engine manufacturer in the world. They have been producing quality reliable engines for more than 60 years and are the engine of choice for many major machinery companies world wide.
Shaft size on this engine is 25mm with a Threaded shaft end
| MODEL | TP186F |
| Engine Type | 4-Stroke Single Cylinder Air Cooled Direct Injected |
| Bore x Stroke (mm) | 86 x 70 |
| Displacement | 406cc |
| Max. Output (HP/rpm) | 8.5/3600 |
| Fuel Consumption (g/kW.h) | Approx. ≤280 |
| Start Mode | Recoil & Electric Start |
| Crankshaft direction | Clockwise from Flywheel End |
| Dimensions (LxWxHmm) | 383x421x450 |
| Package Dimensions | 460x520x550mm – 56kg |
